CONCRETE STEELS AND REINFORCING MESH

On this page you can view the entire range of concrete steel and reinforcing mesh!

Our assortment

Concrete Steel And
Reinforcing Mesh

From the very beginning, our company operates in the field of ferrous metallurgy. Our assortment fully follows the metalworking industry, and in our warehouses you can find a rich assortment of all types of ferrous and non-ferrous metallurgy goods.
You can find our complete range of products on this page.

CONCRETE STEEL

  DIMENSIONS MM
  5,5 6,0 8,0 10,0 12,0 14,0 16,0 18,0 19,0 20,0 22,0 24,0 25,0 28,0 30,0 32,0
STRAIGHTENED (SMOOTH)           x x x   x x x x x x x
STRAIGHTENED (RIBBED)         x x x x x x x x
IN COIL (SMOOTH) x x x x x x x
IN COIL (RIBBED)   x x x x

• Straightened concrete steel 6000 (12 000) mm long.

REINFORCING MESH

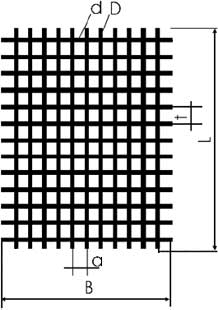

Reinforcing Mesh
MESH TYPE (TIP) DINAMETAR OF WIRES
LONGITUDINAL MM (D)		 DINAMETAR OF WIRES
TRANSVERSE MM (d)		 AXIAL DISTANCE OF WIRES
LONGITUDINAL MM (a)		 AXIAL DISTANCE OF WIRES
TRANSVERSE MM (t)
Q 84 4,0 4,0 150 150
Q 92 4,2 4,2 150 150
Q 111 4,6 4,6 150 150
Q 126 4,0 4,0 100 100
Q 131 5,0 5,0 150 150
Q 139 4,2 4,2 100 100
Q 166 4,6 4,6 100 100
Q 188 6,0 6,0 150 150
Q 196 5,0 5,0 100 100
Q 221 6,5 6,5 150 150
Q 238 5,5 5,5 100 100
Q 257 7,0 7,0 150 150
Q 283 6,0 6,0 100 100
Q 331 6,5 6,5 100 100
Q 335 8,0 8,0 150 150
Q 378 8,5 8,5 150 150
Q 385 7,0 7,0 100 100
Q 424 9,0 9,0 150 150
Q 442 7,5 7,5 100 100
Q 503 8,0 8,0 100 100
Q 524 10,0 10,0 150 150
Q 567 8,5 8,5 100 100
Q 577 10,5 10,5 150 150
Q 636 9,0 9,0 100 100
Q 709 9,5 9,5 100 100
Q 785 10,0 10,0 100 100

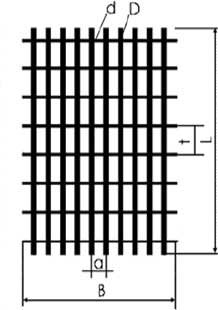

Reinforcing Mesh
MESH TYPE (TIP) DINAMETAR OF WIRES
LONGITUDINAL MM (D)		 DINAMETAR OF WIRES
TRANSVERSE MM (d)		 AXIAL DISTANCE OF WIRES
LONGITUDINAL MM (a)		 AXIAL DISTANCE OF WIRES
TRANSVERSE MM (t)
R 84 4,0 4,0 150 250
R 92 4,2 4,0 150 250
R 111 4,6 4,0 150 250
R 126 4,0 4,0 100 250
R 131 5,0 4,0 150 250
R 139 4,2 4,0 100 250
R 166 4,6 4,2 100 250
R 188 6,0 4,0 150 250
R 196 5,0 4,2 100 250
R 221 6,5 4,6 150 250
R 238 5,5 4,2 100 250
R 257 7,0 5,0 150 250
R 283 6,0 4,0 100 100
R 331 6,5 4,6 100 250
R 335 8,0 5,0 150 250
R 378 8,5 5,0 150 250
R 385 7,0 5,0 100 250
R 424 9,0 6,0 150 250
R 442 7,5 5,5 100 250
R 503 8,0 6,0 100 250
R 524 10,0 6,0 150 250
R 567 8,5 6,0 100 250
R 577 10,5 6,0 150 250
R 636 9,0 6,0 100 250
R 709 9,5 6,0 100 250
R 785 10,0 6,0 100 250
